NAP 100 Two-channel Power Amplifier

$1,290.00

Discontinued

The NAP 100 is a classic expression of traditional Naim Audio power amplifier engineering. While its dimensions are conveniently compact – just a mere 20cm wide – its performance is seriously dynamic and expansive.

The NAP 100 is perfect for a number of applications, adding a dose of Naim Audio musicality to a wide variety of systems. Paired with our DAC-V1 digital-to-analogue converter, it becomes the power behind a high-end system to unleash the music from your PC or Mac. Add a UnitiServe to the equation and you create a full hi-fi system that divorces your listening experience from the desktop and allows you complete control from our n-Serve iOS app.

Out of stock

SKU: NANAP100 Categories: , ,

Product Description

Discontinued.

The NAP 100 is a classic expression of traditional Naim Audio power amplifier engineering. While its dimensions are conveniently compact – just a mere 20cm wide – its performance is seriously dynamic and expansive.

The NAP 100 is perfect for a number of applications, adding a dose of Naim Audio musicality to a wide variety of systems. Paired with our DAC-V1 digital-to-analogue converter, it becomes the power behind a high-end system to unleash the music from your PC or Mac. Add a UnitiServe to the equation and you create a full hi-fi system that divorces your listening experience from the desktop and allows you complete control from our n-Serve iOS app.

Features
  • 50W per channel output into 8 ohms
  • Dual mono power amplifier design
  • Audiophile grade hand-selected components
  • Linear power supply with a large toroidal transformer
  • Pair with the DAC-V1 and UnitiServe for compact, high-end music system
Technology & Craft

Despite its small size, the NAP 100 packs a serious punch when it comes to sound quality. Delivering 50 watts per channel into 8 Ohms, and 75 watts into 4 Ohms, its dual mono design is based on the circuit topology found in Naim’s reference all-in-one player, the SuperUniti.

Naim’s engineers also took inspiration from classic Naim Audio power amplifier design in developing the NAP 100. A large toroidal transformer and hand-matched, hand-wired critical componentry allow it to bring new levels of clarity and vitality to your music.

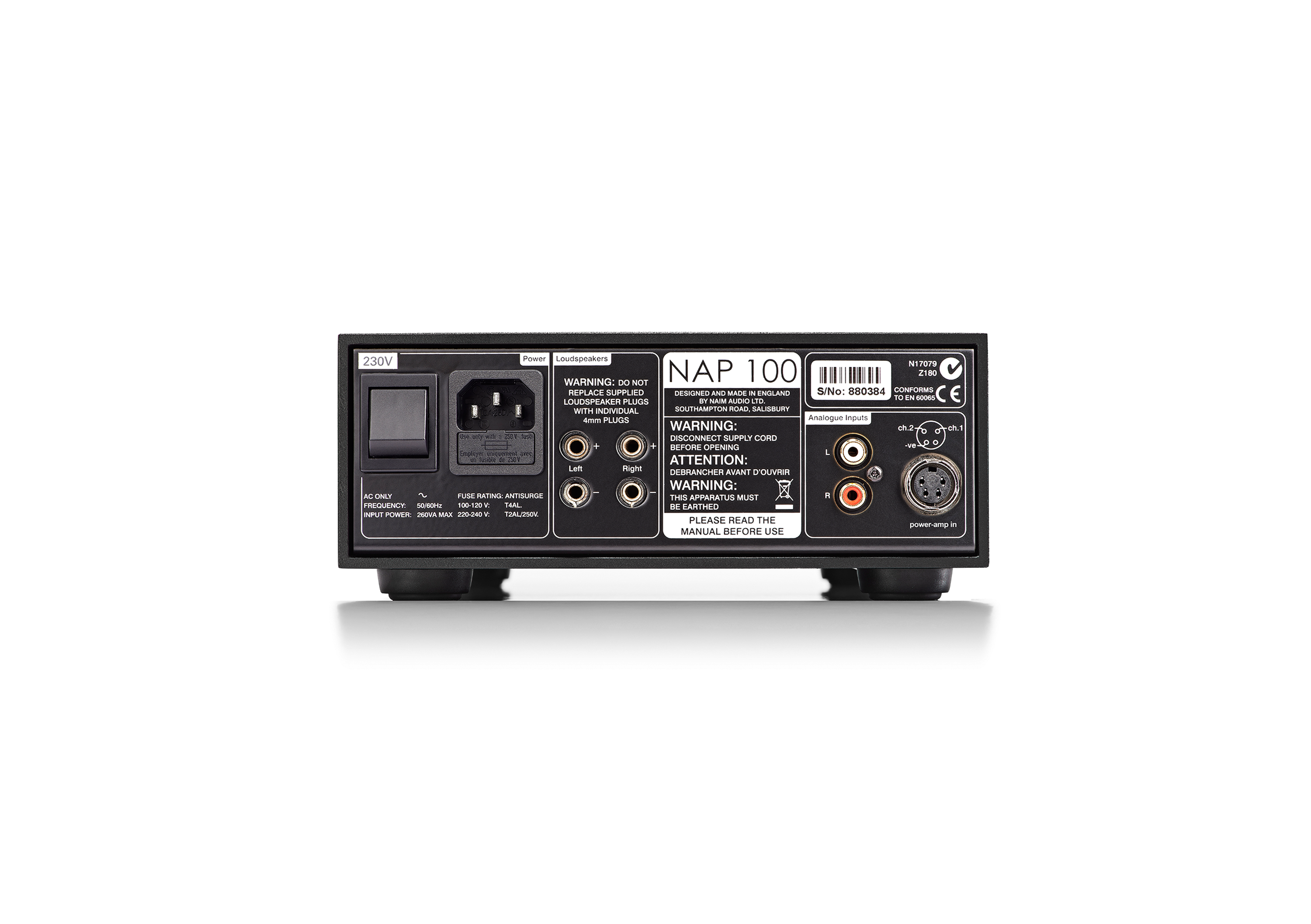

Audio Inputs
Analogue Input 1 x 4-pin DIN, 1 x RCA pair
Input Impedance 18kΩ
Audio Outputs
Gain +29dB
Frequency Response  -3dB at 3.5Hz – 69kHz
Minimum Load Impedance
Speaker Outputs
Speaker Outputs L & R, 4mm “banana” sockets
Speaker Outputs 50W per channel into 8Ω, 75W per channel into 4Ω
Power
Mains Supply 115V or 230V, 50 or 60Hz
Power Consumption (quiescent) 15VA
Power Consumption 260VA
Physical
Dimensions (HxWxD) 87 x 207 x 314 mm
Weight 5.1 kg
Shipping Dimensions 210 x 280 x 410 mm
Shipping Weight 7.6 kg
Supplied with SNAIC
Finish
Front Black powder coated
Case Black powder coated
