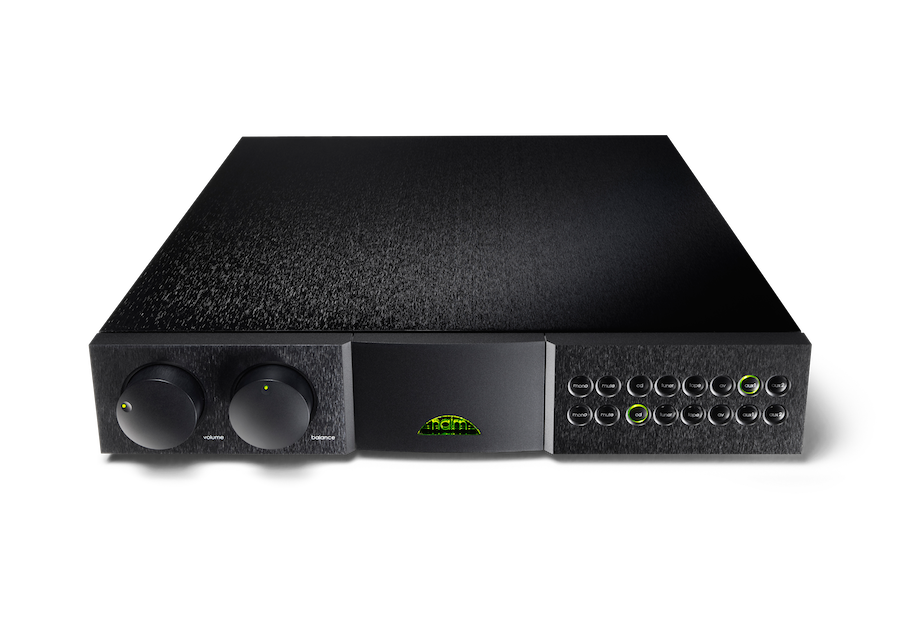

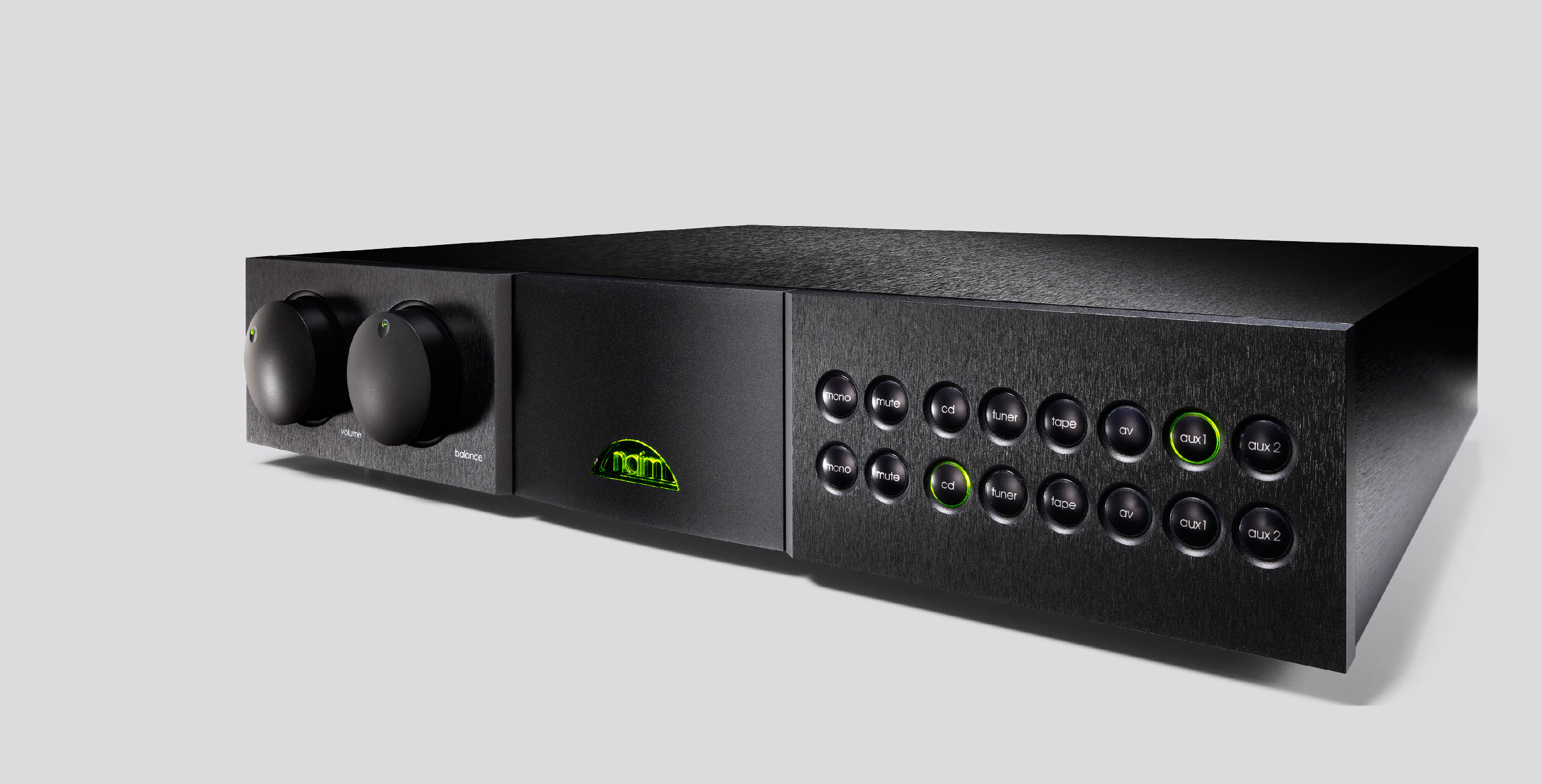

NAC552 Reference Preamplifier

$34,995.00

Starting with the revolutionary NAC 12 back in 1974, Naim Audio preamplifiers have both rewritten the rules and set the standards for others to follow. The NAC 552 is second only to the Statement NAC S1: its distinctive two-box configuration marks it out from the competition just as surely as its unfettered musicality reflects our core values. It’s one of the best preamplifiers Naim have ever produced, and among the best in the world.

Click to email your order

SKU: NANAC552 Categories: , ,

Product Description

Starting with the revolutionary NAC 12 back in 1974, Naim Audio preamplifiers have both rewritten the rules and set the standards for others to follow. The NAC 552 is second only to the Statement NAC S1: its distinctive two-box configuration marks it out from the competition just as surely as its unfettered musicality reflects our core values. It’s one of the best preamplifiers Naim have ever produced, and among the best in the world.
Features
  • Two-box configuration for optimum rejection of electromagnetic interference
  • Split-rail power supply featuring 800VA toroidal transformer, three smoothing capacitors and new Discrete Regulator (DR)
  • Fully suspended sub-chassis for superior isolation of sensitive circuit boards
  • AV bypass mode for simple connection to an existing AV system
  • Support for both DIN and RCA inputs to facilitate connection into a wider range of systems
  • Independent listen and record banks for maximum flexibility
  • Assignable inputs for enhanced usability with a range of sources
Technology & Craft

Like every component in Naim’s flagship 500 Series range, the NAC 552 has been developed without compromise or constraint. Its two-box design, which houses the power supply components in a separate enclosure to better control electromagnetic interference, is classically Naim Audio. By contrast, the power supply itself employs radically new thinking, including a new split-rail configuration that almost entirely eliminates power supply noise in the signal earth.

The sound critical electronics of the NAC 552 are mounted on a brass sub-chassis which is fully suspended on coil springs at a frequency below the threshold of human hearing. This method of suspension maximises isolation, hence minimizing the effect of vibration on the highly sensitive electronic components. Carefully selected precision rotary potentiometers with precious metal wipers are used to preserve music integrity and ensure long-term stability.

Six inputs on the NAC 552 can be selected directly from either the front panel or the remote control. In addition to the usual DIN inputs, preferred for their superior earthing and impedance matching, the NAC 552 owner can configure two of the inputs for use with the more common RCA phono type connectors, enabling the use of alternative components with pre-owned interconnects.

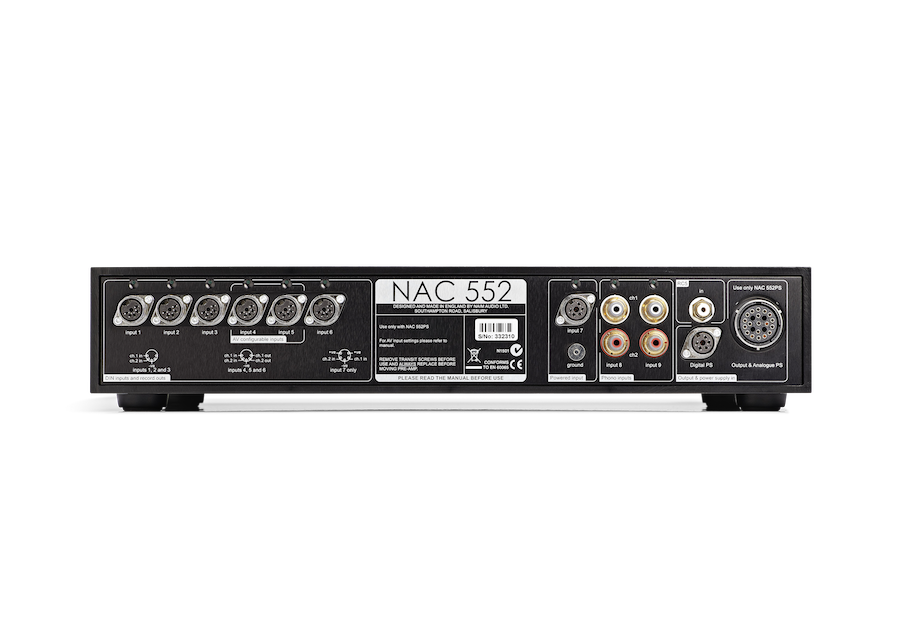

Audio Inputs
Analogue 7 x DIN, 2 x RCA
Input Sensitivity 75mV
Input Impedance 47kΩ
Other Inputs Two inputs configurable for unity gain
Audio Outputs
Audio Outputs 1 x variable, 3 x fixed (DIN)
Line Outputs Fixed (level) 75mV, 600Ω
Line Outputs Variable (level) 775mV
Output Impedance <50Ω
Load Impedance 10kΩ (min.)
Power Outputs Naim phono amplifier
Connectivity
Remote Control Infra Red (RC5)
RS232 Optional (DE9 female)
Remote Input RCA on rear (RC5)
User Control

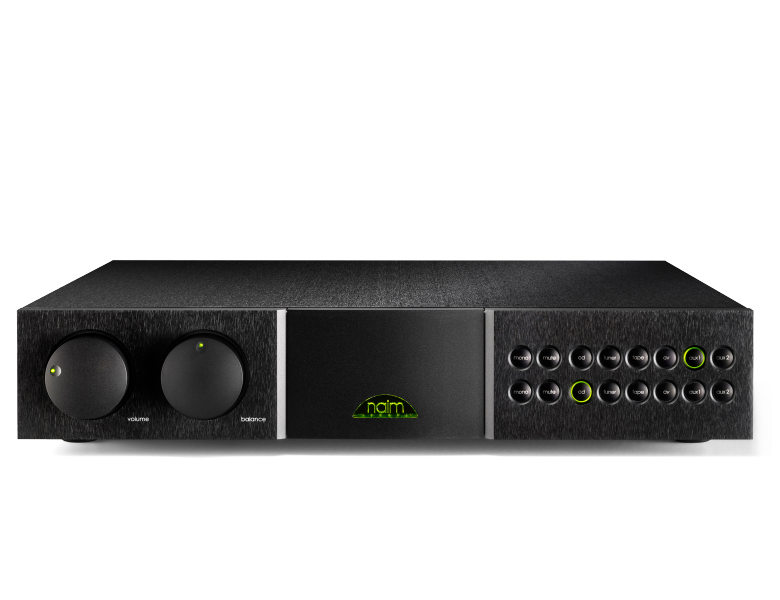

Front Panel Volume control, balance control, sixteen button matrix
Handheld NARCOM-4 Remote Control
Power
Supply Voltage +/-12V, 24V, 32V
Power Supply Options 552 PS
Upgrades
Power Supply 552 PS
Physical
Dimensions (HxWxD) 87 x 432 x 314 mm
Weight 12.9 kg
Supplied with 552 PS, Power-Line, R-Com and Burndy
Finish
Front Brushed and black anodised
Case Brushed and black anodised
