NAC202
nac202_rearnac202_3_0nac202_2_0nac202_1

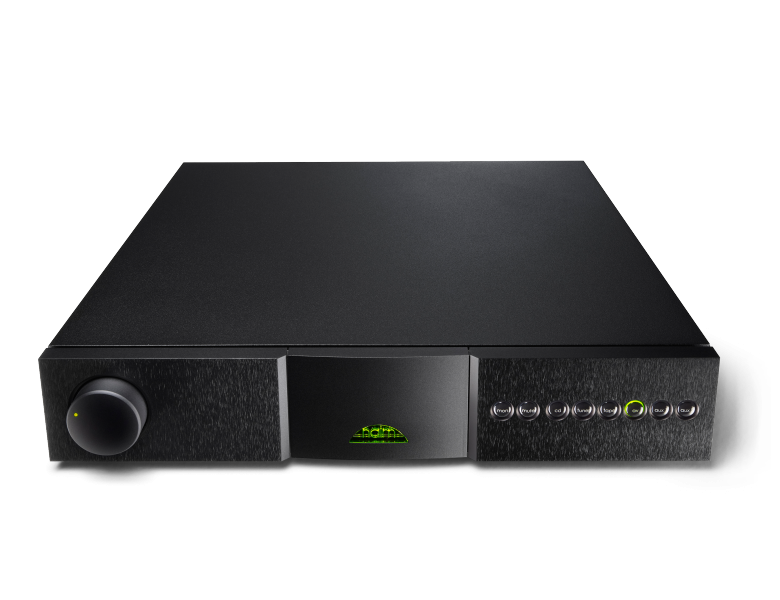

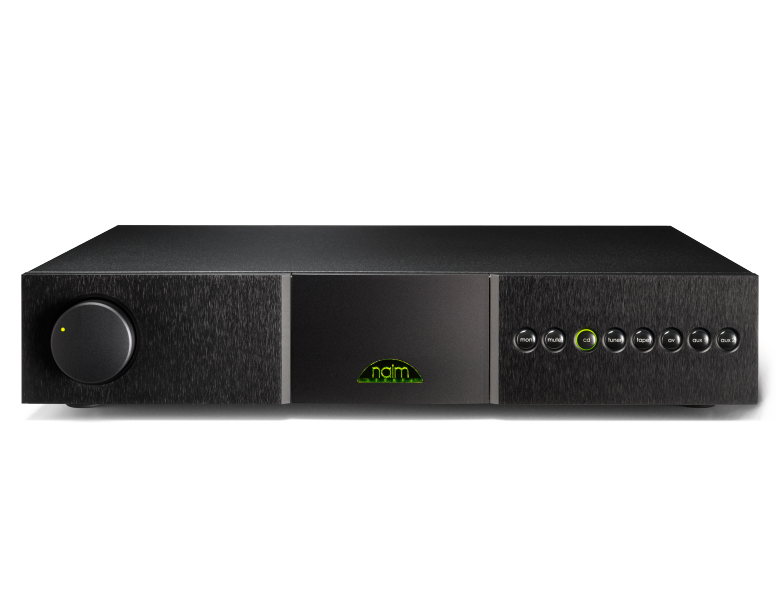

NAC202 Preamplifier

$3,490.00

Discontinued – replaced by NSC222.
Step up from the NAC 202 and you arrive at the outstanding NAC 282, which includes the NAPSC power supply unit optionally available on its sibling. The NAPSC independently powers the NAC 282’s digital and control circuits, leaving its audio circuits to either the power supply of a NAC 155 XS or NAP 200 power amplifier, or to one of Naim’s standalone FlatCap XS, HiCap or SuperCap power supplies. The result is even greater transparency and superior musicality plus, of course, all the flexibility you’d expect from one of Naim’s preamplifiers.

Out of stock

SKU: NANAC202 Categories: , ,

Product Description

Step up from the NAC 202 and you arrive at the outstanding NAC 282, which includes the NAPSC power supply unit optionally available on its sibling. The NAPSC independently powers the NAC 282’s digital and control circuits, leaving its audio circuits to either the power supply of a NAC 155 XS or NAP 200 power amplifier, or to one of Naim’s standalone FlatCap XS, HiCap or SuperCap power supplies. The result is even greater transparency and superior musicality plus, of course, all the flexibility you’d expect from one of Naim’s preamplifiers.

Features
  • Support for both DIN and RCA inputs to facilitate connection into a wider range of systems
  • Silent microprocessor control that sleeps during listening
  • Precision rotary potentiometers with precious metal wipers
  • AV bypass mode for simple connection to an existing AV system
  • Powered input for use with StageLine or SuperLine phono stages

Performance upgradable with FlatCap XS, HiCap or SuperCap power supply; can also be powered from the preamp inputs of the NAP 155 XS or NAP 200 power amplifier

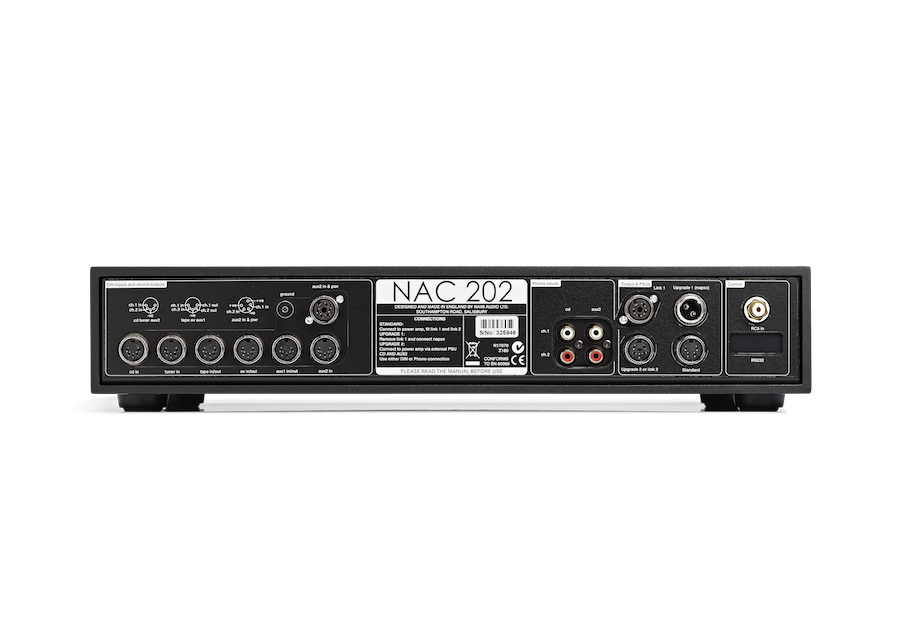

Audio Inputs
Analogue Input 4 x DIN, 2 x DIN, RCA
Input Sensitivity 75mV
Input Impedance 47kΩ
Other Inputs AV input configurable for unity gain
Audio Outputs
Audio Outputs 2 x variable (DIN), 3 x fixed (DIN)
Line Outputs Fixed (level) 75mV, 600Ω
Line Outputs Variable (level) 775mV
Other Outputs <50Ω
Load Impedance 10kΩ (min.)
Power Outputs Naim phono amplifier
Connectivity
Remote Control Infra Red (RC5)
Remote Input RCA on rear (RC5)
RS232 Optional (DE9 female)
User Control
Front Panel Volume control, balance control, sixteen button matrix
Handheld NARCOM-4 Remote Control
Power
Supply Voltage 18V, 24V
Power Supply Options NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap
Upgrades
Power Supply 2 x Hi-Cap/SuperCap
Other NAPSC
Physical
Dimensions (HxWxD) 87 x 432 x 314 mm
Weight 7.0 kg
Supplied with NARCOM-4 Remote Control
Finish
Front Brushed and black anodised
Case Black powder coated
