Melco N100 Music Server from Basil Audio

Melco N100



Please only use the power supply supplied with the N100. It has come to our notice that replacement power supplies are being sold that claim to improve the performance of the N100 when used in place of the external power supply shipped with the unit.

The resulting performance using third part “linear power supplies” and similar products will most likely be significantly diminished and may in some circumstances damage the N100 and invalidate the manufacturer’s warranty. Under no circumstances should a power supply other than the one included with the N100 be used.


Product Description


N100 is the half-sized model of MELCO music library which has 2TB or 5TB hard disc drive and 3 x USB2.0 port. The full functioned model in the same size and design as MELCO CD drive “D100”.


  • Fine design both for rack-style and desktop use (215 mm)
  • Aluminum front and top panel with hairline finish
  • 2 mm steel sheet chassis for anti-vibration
  • HDD is designed with anti-vibration system “HS-S²”(Highly Stable Storage System) under same concept as N1ZS/2A.

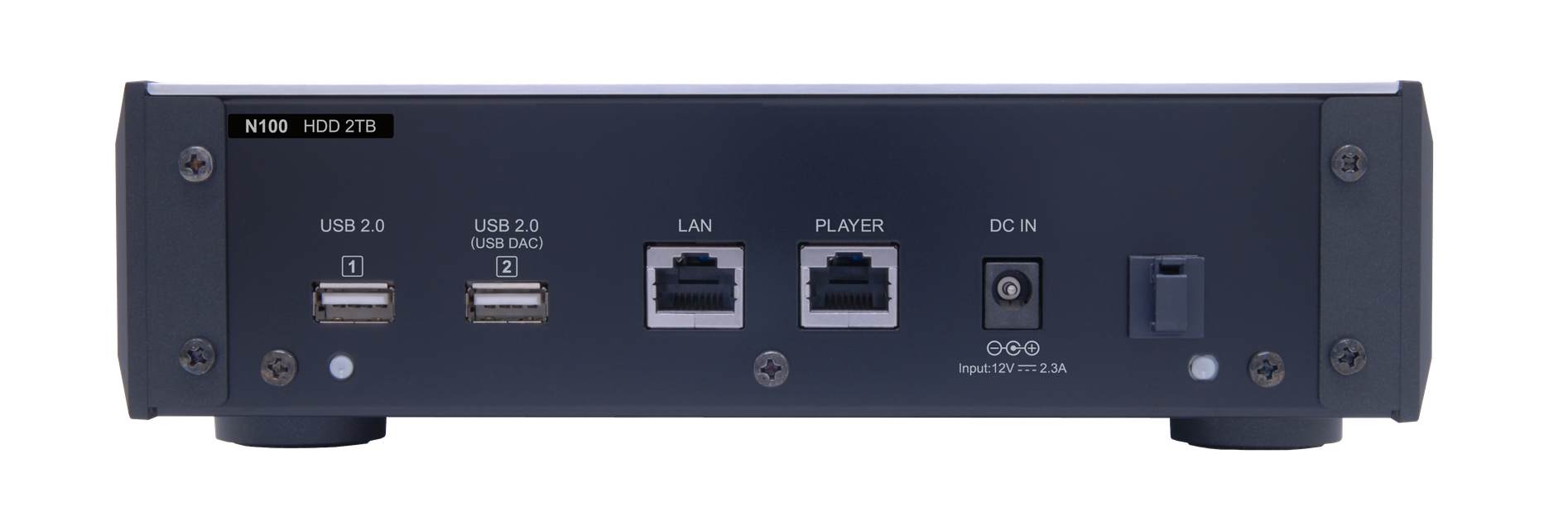

  • LAN port for direct connection with player (no LED for status indication)
  • USB2.0  x3 are compatible with USB-DAC, USB CD drive and USB storage such as USB HDD or USB flash memory. When the drive is connected, user can choose the purpose of the drive on the front display. (Import, expansion, backup, restore etc)
  • Low C/N clock of NDK
  • Power management system by FPGA for improved system stability.
  • Fan-less design

Main functions

  • 2TB or 5TB 2.5”SFF HDD x 1
  • Gigabit Dual Ethernet LAN port
  • PC file sharing function
  • DLNA/UPnP media server function with Twonky Server 8.5
  • USB-DAC connection for USB playback – supports Gapless and DSD with DoP and Melco Markerless DSD.
  • Automatic download of music files from Hires, and other vendors to be announced, with file integrity check.
  • CD import to local HDD using Gracenote Database.
  • Backup and Restore of internal HDD – compatible with Melco N1 series.
  • 215 x 61 x 269mm
  • Net weight Appx.3kg

Additional Information

Weight 20 lbs
Dimensions 21 x 20 x 10 in

Black, Silver

HDD Size

2TB, 5TB
