HTS40 6 inch 3 way




  • No compromise driver technology borrowed from ATC’s high-end studio monitoring products.
  • High dynamic range for accurate reproduction of musical transients and high-impact film soundtracks.
  • Neutral voicing and very low distortion delivers audiophile performance from an install package.
  • Hidden wall mounting brackets and input terminals.
  • Soft dome mid-range driver as used in ATC’s pro speakers
  • 6 year warranty.
  • Handmade in England.


High Frequency:  ATC 25mm Neo Soft Dome
Mid: ATC 75mm Soft Dome
Low Frequency: ATC 164mm SC

Matched Response: +/- 0.5dB
Frequency Response:
Half Space Radiation -6dB: 32Hz–22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 112dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 380Hz & 3.5kHz
Connectors: Binding Posts/4mm Plugs

Cabinet Dimensions (HxWxD):
With Grill: 740x380x166mm
Without Grill: 740x380x154mm

With Grill: 380x740x166mm
Without Grill: 380x740x154mm

HTS40/HTS40C models employ an identical cabinet but with a different HF driver position.

Weight: 23kg

SKU: atchts40 Categories: , , ,

Product Description

On Wall Speaker

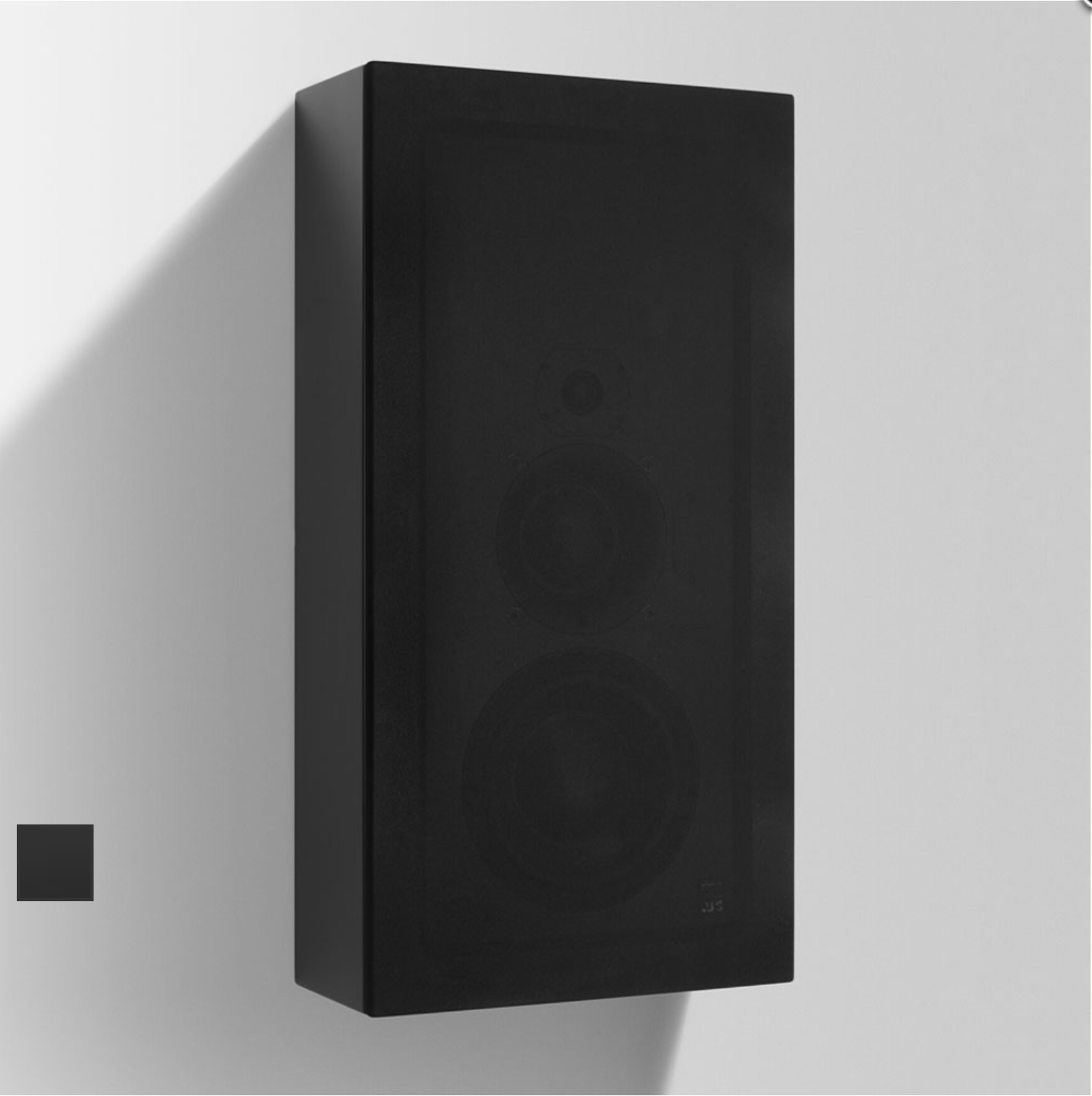

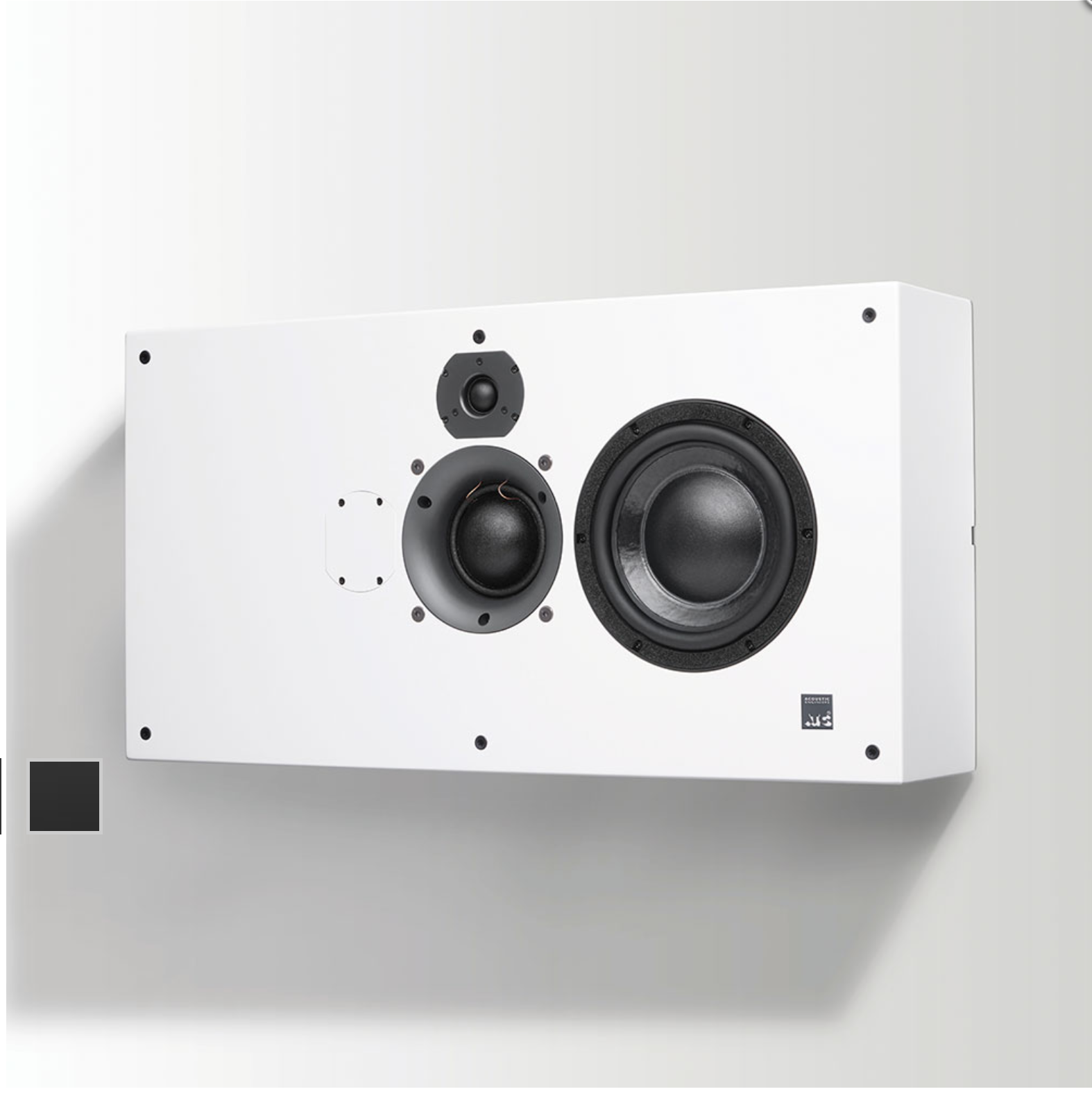

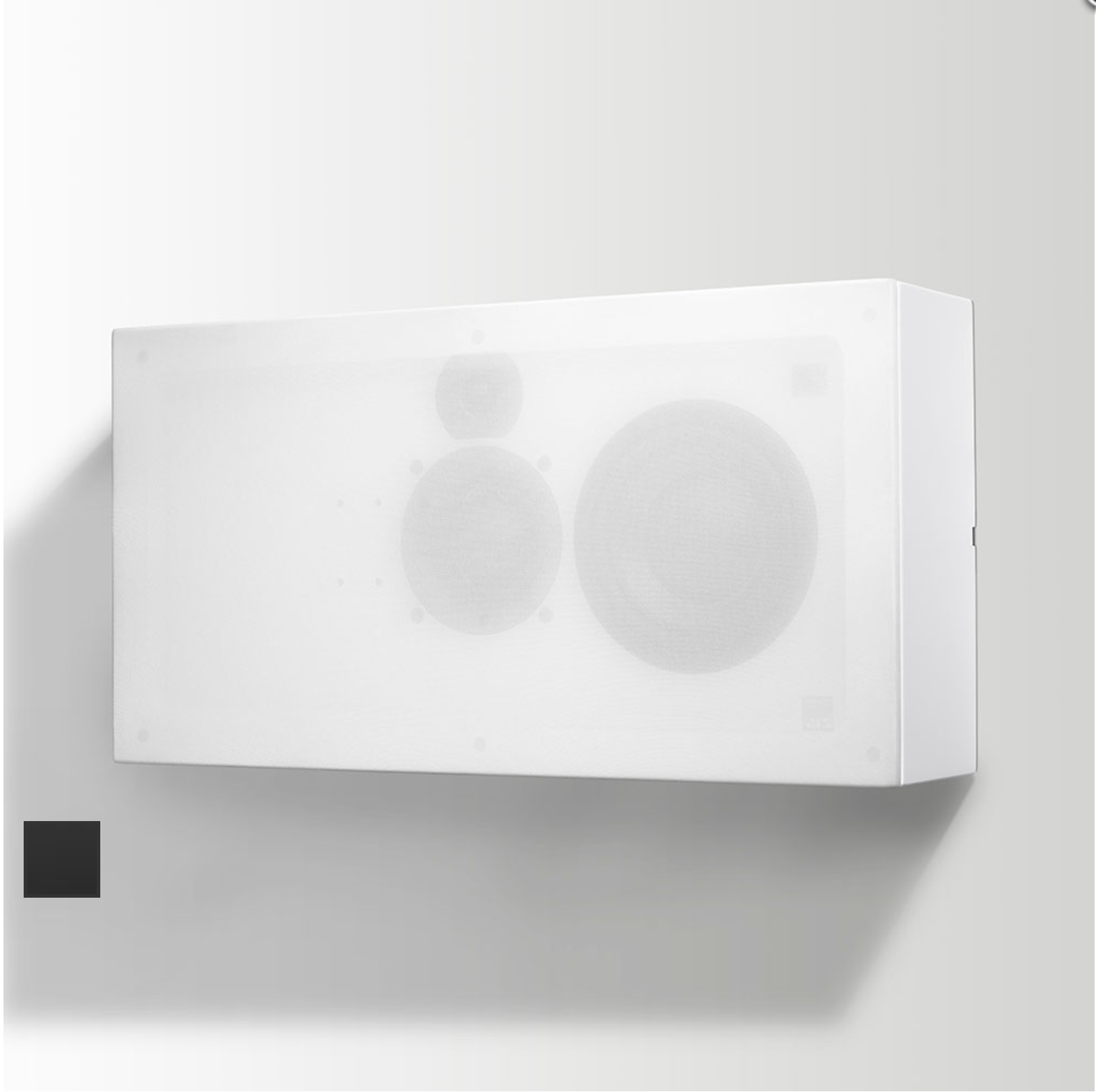

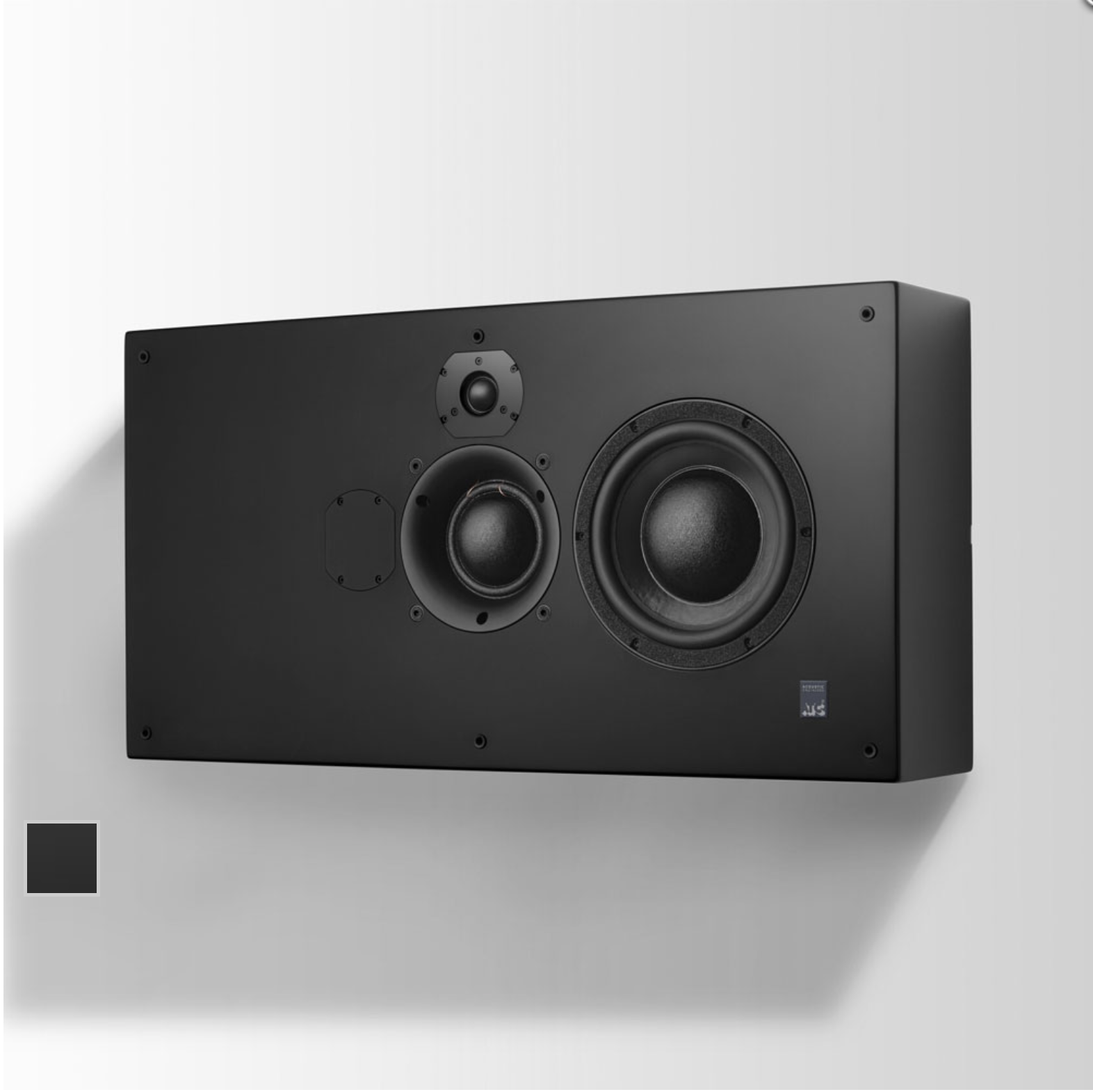

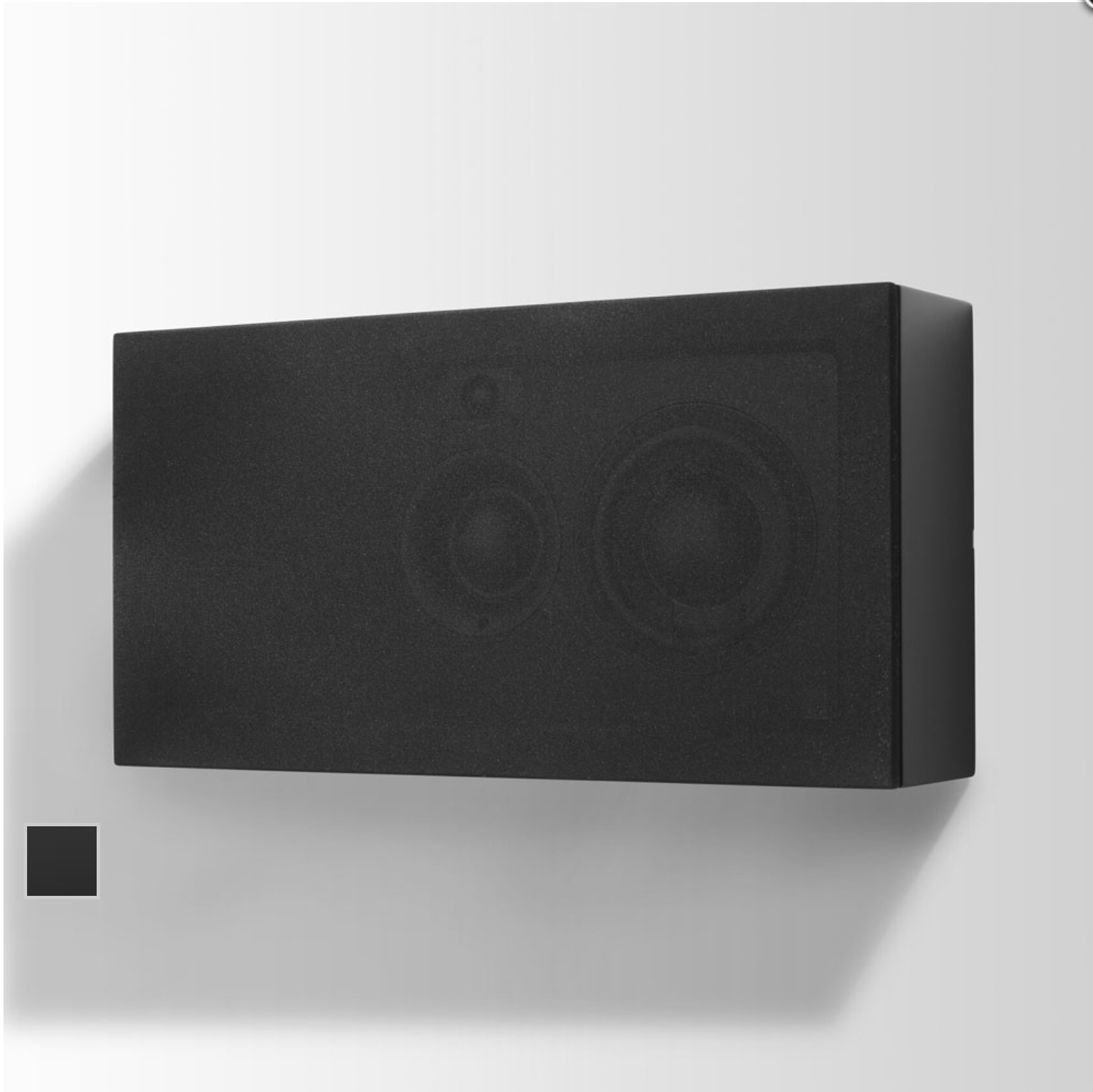

This full range 3-way design is suitable for main loudspeakers in medium sized rooms and may also be used as surround loudspeakers in larger rooms.  Available in portrait and landscape versions, in either white or black satin finishes, the HTS40’s clean, simple visual design can be seamlessly integrated into a wide range of interiors and decors.

Additional Information


Landscape, portrait


black, white
